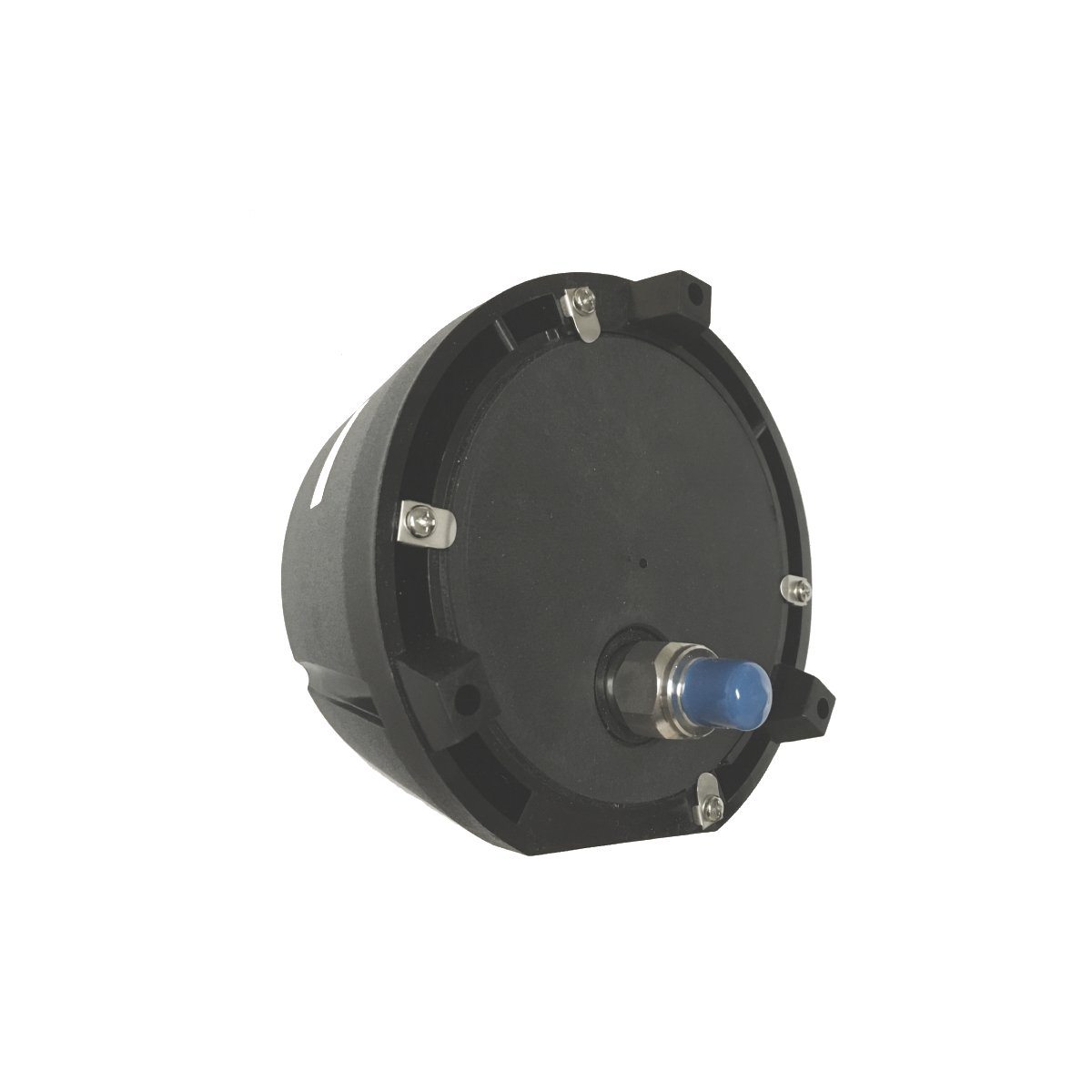

PPC-ZR 4.5in Dial Back Connection 2 Back
PPC-ZR 4.5in Dial Back Connection 2
PPC-ZR 4.5in Dial Back Connection 2 Back
**Please note that pictures may not properly represent actual products**

PPC-ZR Gauge | 4.5in Dial | Back Mount 2

PSI Range: Vac | 0
Dial: PSI-KPA
Connection: 0.25 in | Brass

Product variant with selected options does not exist!
$ 125.80
SKU: PPC5280ZR
Weight: 1.0 lb
Share Post Pin E-mail

PPC-ZR Gauge | 4.5in Dial | Back Mount 2

Product Features:

Winters PPC StabiliZR Process Gauges are used where operator safety is a must. Applications are suited for the chemical and petroleum industry where chemical compatibility and contamination is a concern. This winters ppc gauge has StabiliZR feature and dual scale with 4.5 inch Dial and 1/2 inch connection. StabiliZR feature eliminates the need for liquid fill while still allowing the dampening of gauge needle.

  • StabiliZR dampened movement minimizes effects of pulsation and vibration without liquid filling
  • Solid phenolic front and polypropylene pressure relief back safety case
  • ±0.5% accuracy
  • Stainless steel full rotary movement
  • Micrometer pointer for ease in calibration
  • Under and overload stops
  • 316L stainless steel or brass wetted parts standard
  • Restrictor screws standard on dual scale (optional on single scale gauges)
  • ASME B40.100 compliant
  • RoHS compliant (SS and Monel internals only)
  • CRN registered
  • 5 year warranty
