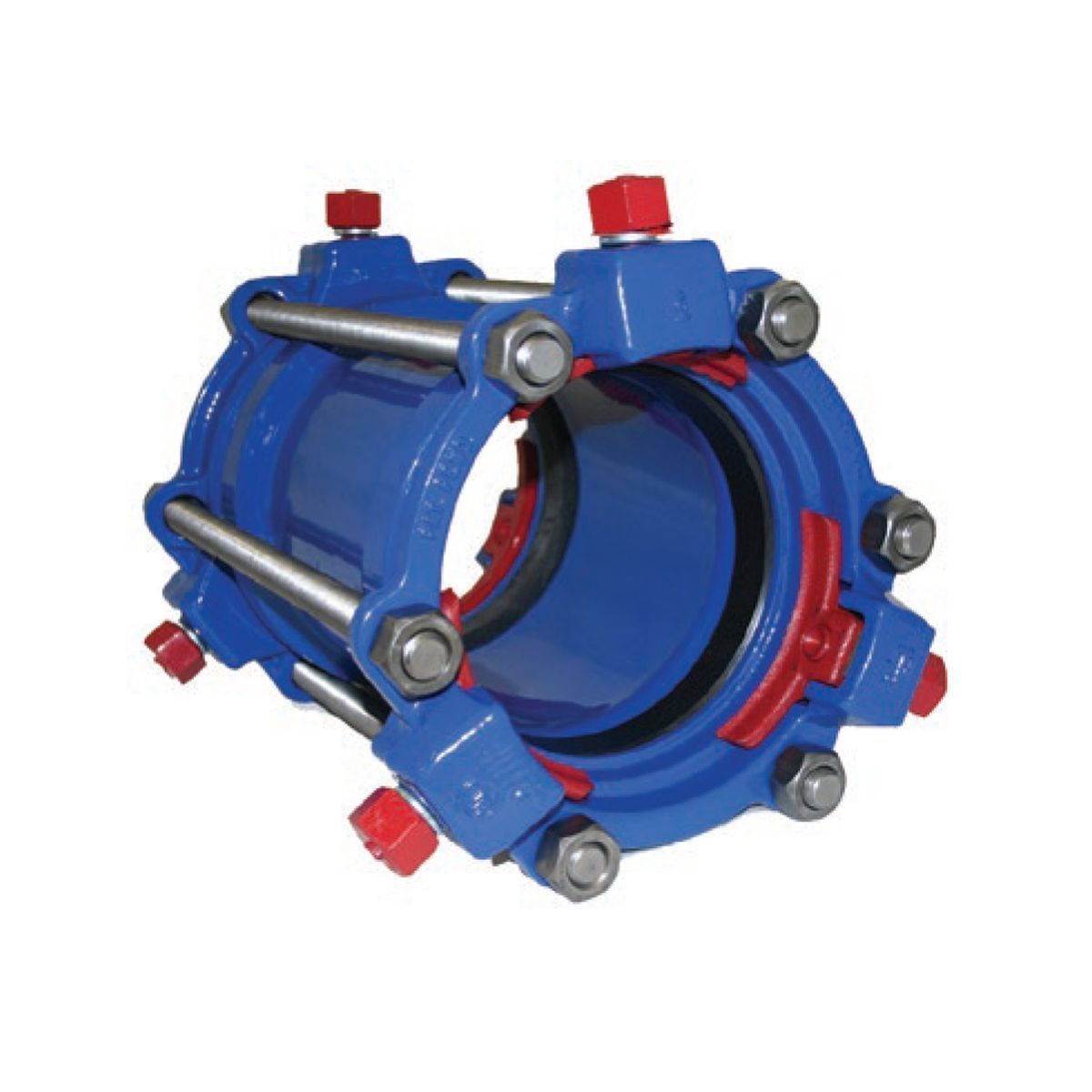

Style 472 PipeLock Restraint Steel Coupling PVC -1
Style 472 PipeLock Restraint Steel Coupling PVC -1
**Please note that pictures may not properly represent actual products**

Style 472 | PipeLock Restraint | Steel Coupling | PVC

Nominal Size: 3 in
OD Range: 3.5 in
Sleeve Length: 7 in

Product variant with selected options does not exist!
$ 346.73
SKU: 472-00000350-203
Weight: 29.0 lb
Share Post Pin E-mail

Style 472 | PipeLock Restraint | Steel Coupling | PVC



Typically ships in 7-10 business days



Product Features:

  • This is a fabricated Steel restraint coupling.
  • Application Joins and restrains from PVC pipe to PVC pipe.
  • Mechanical restraint shall be an integral part of the follower gland utilizing multiple single tooth wedges
  • Comes as a complete unit
  • Use with the Multi-Seal Gasket for more flexibility in nominal sizes 4-12 ‚¬? mixing IPS and D.I. O.D. PVC
  • Breakaway nut torque per wedge is 45 to 60 ft. lbs
  • Longer sleeves available

Style 472 Smith Blair Spec Sheet

Materials:

  • SLEEVE ASTM A283 Gr. C or Carbon Steel having a minimum yield of 30000 PSI FINISH Flexi-Coat Fusion-Bonded Epoxy
  • Cam-Lock‚¬ž Specifications
  • GLAND 65-45-12 Ductile Iron (ASTM A536)
  • WEDGES Single Tooth Ductile Iron heat treated for Ductile Iron pipe applications
  • ACTUATING BOLTS 60-40-18 Ductile Iron (ASTM A536)
  • BREAKAWAY NUTS Carbon Steel or Cast Iron
  • FINISH Gland is Flexi-Coat Fusion-Bonded Epoxy per AWWA C213 Wedges and actuating bolts are E-coated Epoxy
  • Kit Specifications
  • GASKET SBR Standard Mechanical Joint. Per ANSI/AWWA C111/A21.11 SBR Multi-Seal Gasket or MJ transition gasket for Steel/IPS ODs. Optional multi-seal gasket available in 4-12 sizes 30 and 36 sizes supplied with Smith-Blair MJ gasket.
  • STUDS/NUTS High strength low alloy per AWWA C111 Optional 304 Stainless Steel fluoropolymer-coated nuts.
  • Pipe Applications PVC
General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications

Style 472 Smith Blair Spec Sheet

Test Report, Data Sheet And Drawing

Coming Soon
