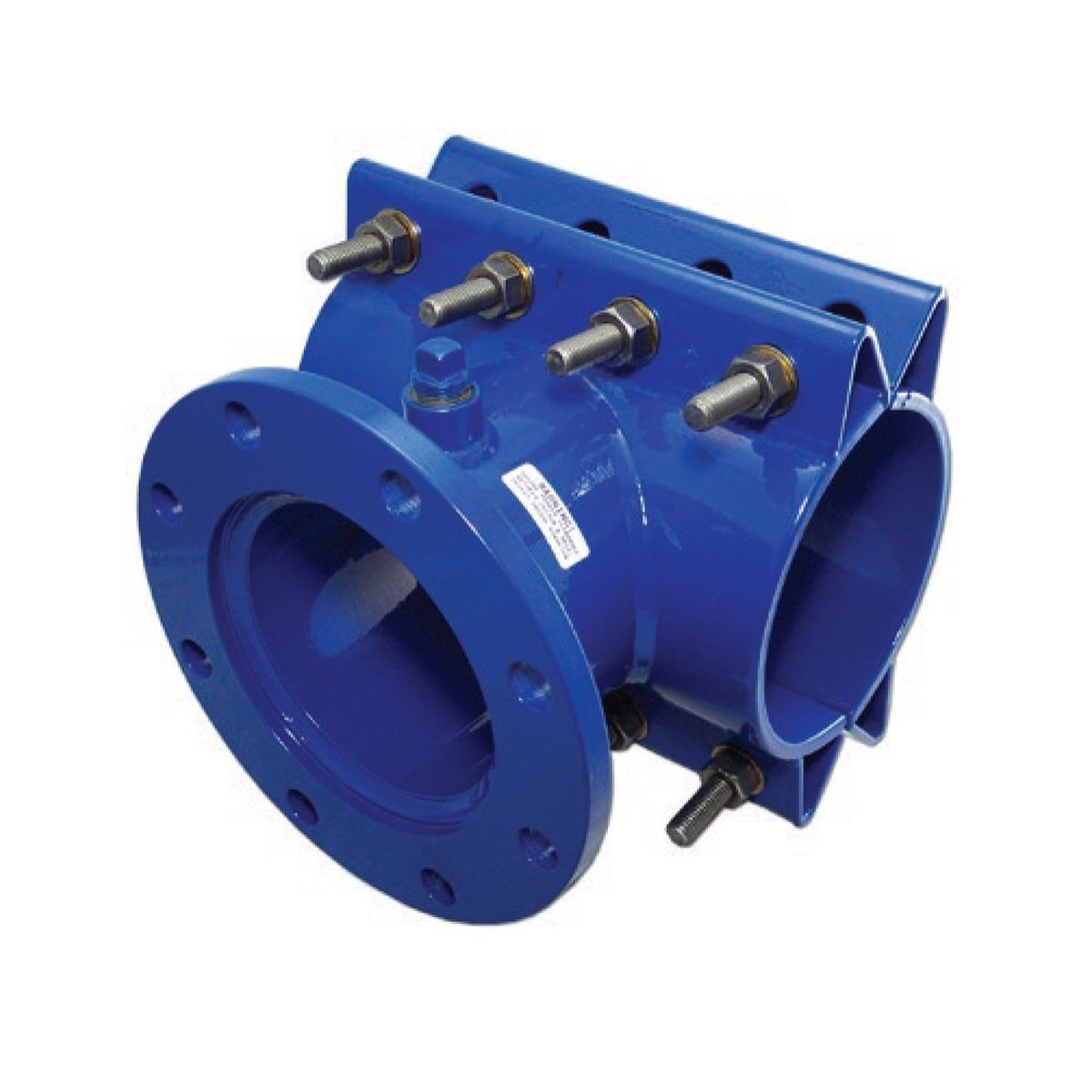

Style 622 | Tapping Sleeve | Carbon Steel | MJ Outlet | Alloy

Typically ships in 7-10 business days

Product Features:

• For 4 pipe and larger reducing and size-on-size flanged outlets. Available with -6threaded outlets.
• Easy to install
• Has range to reduce inventory
• Meets AWWA C223 Standards
• Epoxy Finish meets AWWA C213 Standards
• Virtually 360 support of the pipe
• Roll-resistant gasket will not bind
• Gasket seal increases with line pressure
• No special tools required to install the sleeve
• Flanged outlets are recessed to accept tapping valves
• Flexi-Coat Fusion-Bonded Epoxy Finish is standard for superior corrosion resistance
• test outlet to allow hydrostatic pressure test before tapping the pipe (not available in standard 4 x 4)

Style 622 Smith Blair Spec Sheet

Materials:

• Carbon Steel ASTM A283 Grade C. Type 304 Stainless Steel Optional
• FLANGES AWWA C207 Class D ANSI 150# drilling. Recessed for tapping valve per MSS-SP 60. Optional Other types of flanges threaded outlets MJ outlets
• GASKET Nitrile (Buna N) NSF-61 listed. Concave wedge gasket compounded to resist water oil acids alkalies most (aliphatic) hydrocarbon fluids and other chemicals
• Temperature Range up to +180F
• BOLTS & NUTS High strength low alloy Steel with heavy semi-finished hexagon nuts to ASTM A-307 (ANSI A21.11) standards. Optional Type 304 Stainless Steel bolts and nuts are coated to prevent galling
• FINISH Flexi-Coat Fusion-Bonded Epoxy Finish
• Working Pressure Up to 175 PSI
• Pipe Applications Steel Cast Iron Asbestos Cement PVC
