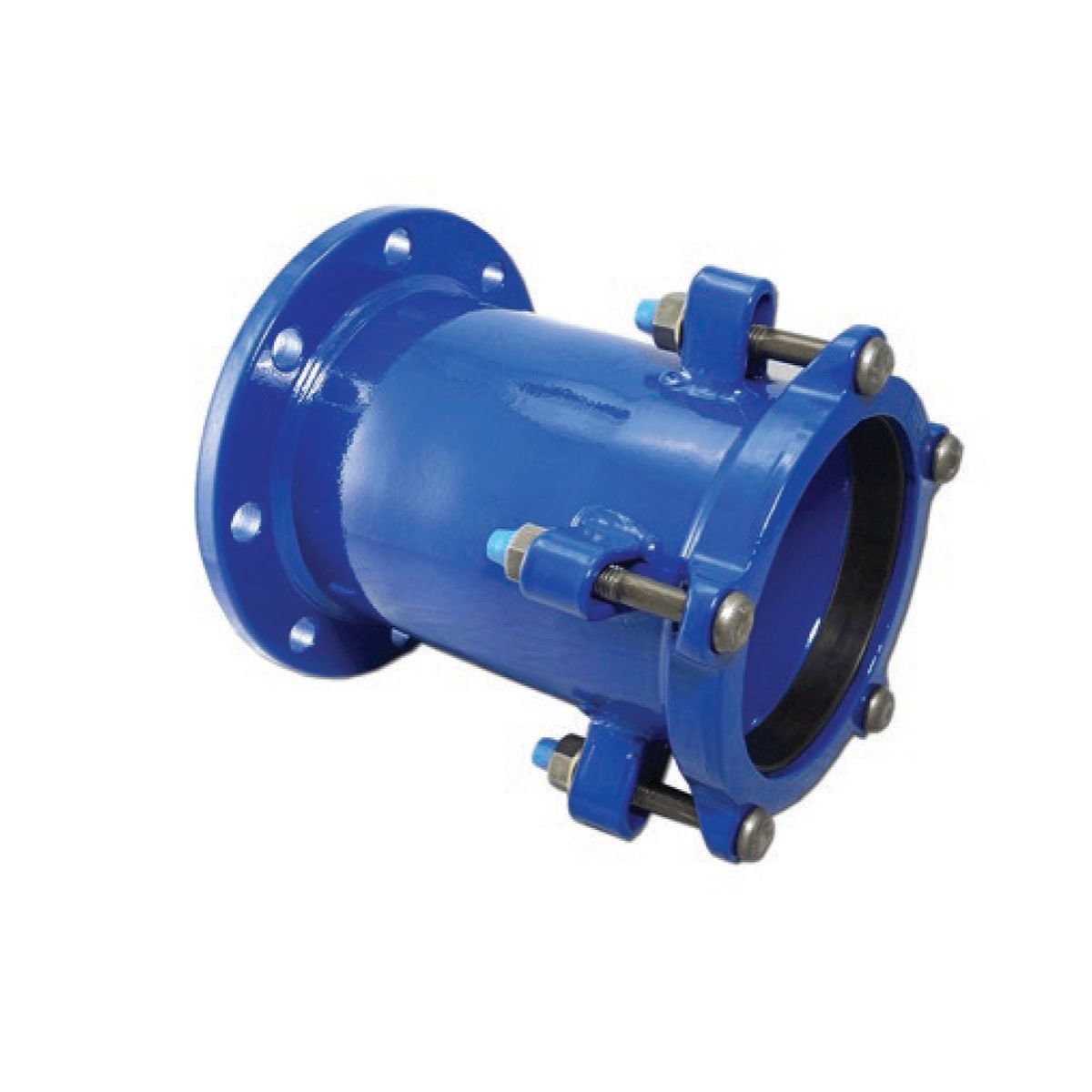

Style 913 | Flanged Coupling Adapter

Typically ships in 7-10 business days

Product Features:

• Fabricated Steel flanged coupling adapter
• Application For joining plain end pipe to flanged valves and fittings.
• Meets applicable AWWA C219 Standards
• Pressure rated at 150 PSI +/- working pressure according to design
• Available in straight (913) or reducing (914) styles to fit your needs
• Provides a quick means of removing and reinstalling flanged fitting already in line Optional anchor studs provide joint restraint capability to secure the plain pipe end
• No need for field fabrications. FCAs work with plain-end pipe to make the flanged connection
• Coupling end helps relieve stress absorb vibration and accept deflection in the piping system

Style 913 Smith Blair Spec Sheet

Materials:

• BODY Steel ASTM A53 ASTM A283 Gr. C or Carbon Steel having a minimum yield of 30000 PSI
• FLANGE 3 thru 5 Sizes ANSI 150 lb. flat face. 6 and above AWWA C207 Class D ANSI 150 lb. drilling
• FOLLOWER 3 thru 12 sizes‚¬?Ductile Iron ASTM A536. 14 and above heavy rolled Steel AISI C1020
• GASKET Nitrile (Buna N) Certified to NSF/ANSI 61. Compounded to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon fluids and many other chemicals
• Temperature Range -20F to +180F
• BOLTS & NUTS High strength low alloy Steel with heavy semi-finished hexagon nuts to AWWA C-111 (ANSI-A21.11) standards
• FINISH Flexi-Coat Fusion-Bonded epoxy per AWWA C213
• Working Pressure Up to 150 PSI depending on size and design
• Pipe Applications Steel Cast Iron Ductile Iron Abestos Cement PVC
