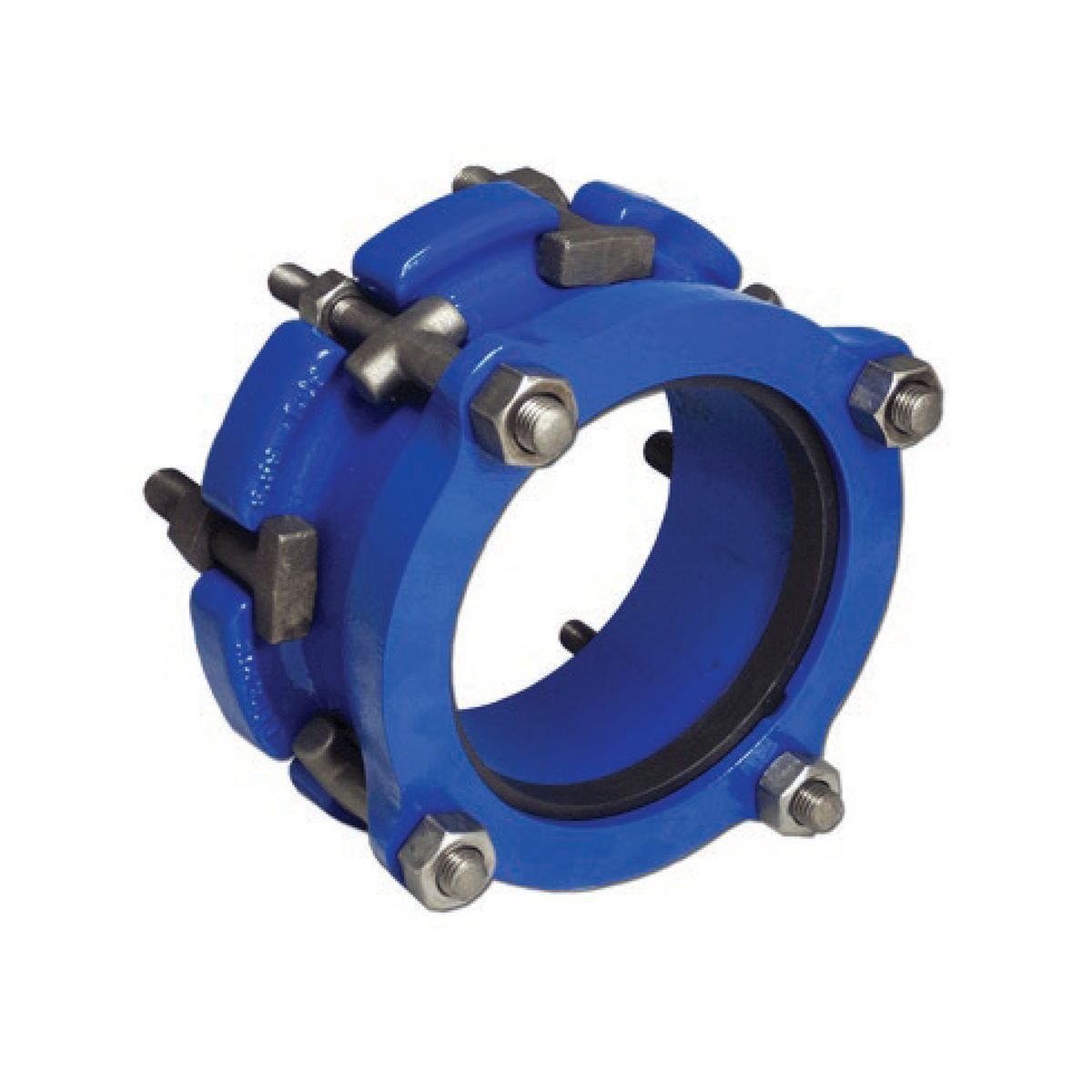

Style 912 | Flanged Coupling Adapter

Nominal Size: 3 in
OD Range: 2.85 in to 3.13 in
Bolts and Nuts Type: Electro to Galvanized

Product variant with selected options does not exist!
$ 318.48
SKU: 912-90031303-000
Weight: 17.0 lb
Share Post Pin E-mail

Style 912 | Flanged Coupling Adapter



Typically ships in 7-10 business days



Product Features:

  • Cast flanged coupling adapter Application For joining plain end pipe to flanged valves and fittings.
  • Heavy cast Ductile Iron parts for long life
  • Shipped complete including flange bolts
  • Meets applicable portions of AWWA C219 Standards
  • Optional anchor studs provide joint restraint capability to secure the plain pipe end Provides a quick means of removing and reinstalling a flanged fitting already in line
  • Compatible with Omni Coupling System gaskets to give your inventory more flexibility
  • Most applications are stab fit making installation easy. No disassembly required for other application types
  • One body per nominal pipe size takes the guesswork out of deciding which body to choose. Just add the correct color flanges and Omni gasket
  • Follower flanges are color-coded by general pipe type. Blue for ductile O.D. red for iron pipe size O.D. and gray for Asbestos-Cement O.D.
  • Coupling end helps relieve stress absorbs vibration and accepts deflection in the piping system
  • No need for field fabrications. FCAs work with a plain-end pipe to make the flanged connection

Style 912 Smith Blair Spec Sheet

Materials:

  • BODY Ductile Iron ASTM A536 bolt circle bolt size and spacing conform to ANSI lb. flange drilling
  • FOLLOWER Ductile Iron ASTM A536
  • GASKET Nitrile (Buna N) Certified to NSF/ANSI 61. Compounded to produce superior storage and performance characteristics while resisting water acids alkalies most (aliphatic) hydrocarbon fluids and other chemicals
  • Temperature Range -20F to 180F.
  • NOTE Consult manufacturer for specific applications or other service temperatures.
  • O-RING Nitrile
  • NUTS High strength low alloy steel (HSLA) per AWWA C111/A21.11
  • Optional 304 Stainless Steel
  • TEE BOLTS Ductile Iron
  • CROSS BOLTS Ductile Iron
  • STUDS ATSM A193 Grade B7 electro-galvanized with dichromate seal. Optional 304 Stainless Steel
  • FINISH Flexi-Coat Fusion-Bonded Epoxy Finish Working Pressure Up to 250 PSI.
  • Pipe Applications Steel Cast Iron Asbestos Cement Ductile Iron PVC
General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications

Style 912 Smith Blair Spec Sheet

Test Report, Data Sheet And Drawing

Coming Soon

Questions & Answers

Have a Question?

Ask a Question

  • do these come in different lengths

    The length of the adapter while dependant on the nominal pipe size doesn't really change all that much. The length for a 3" Nom is 4.56" where as the length for a 12" Nom is 6.375".
