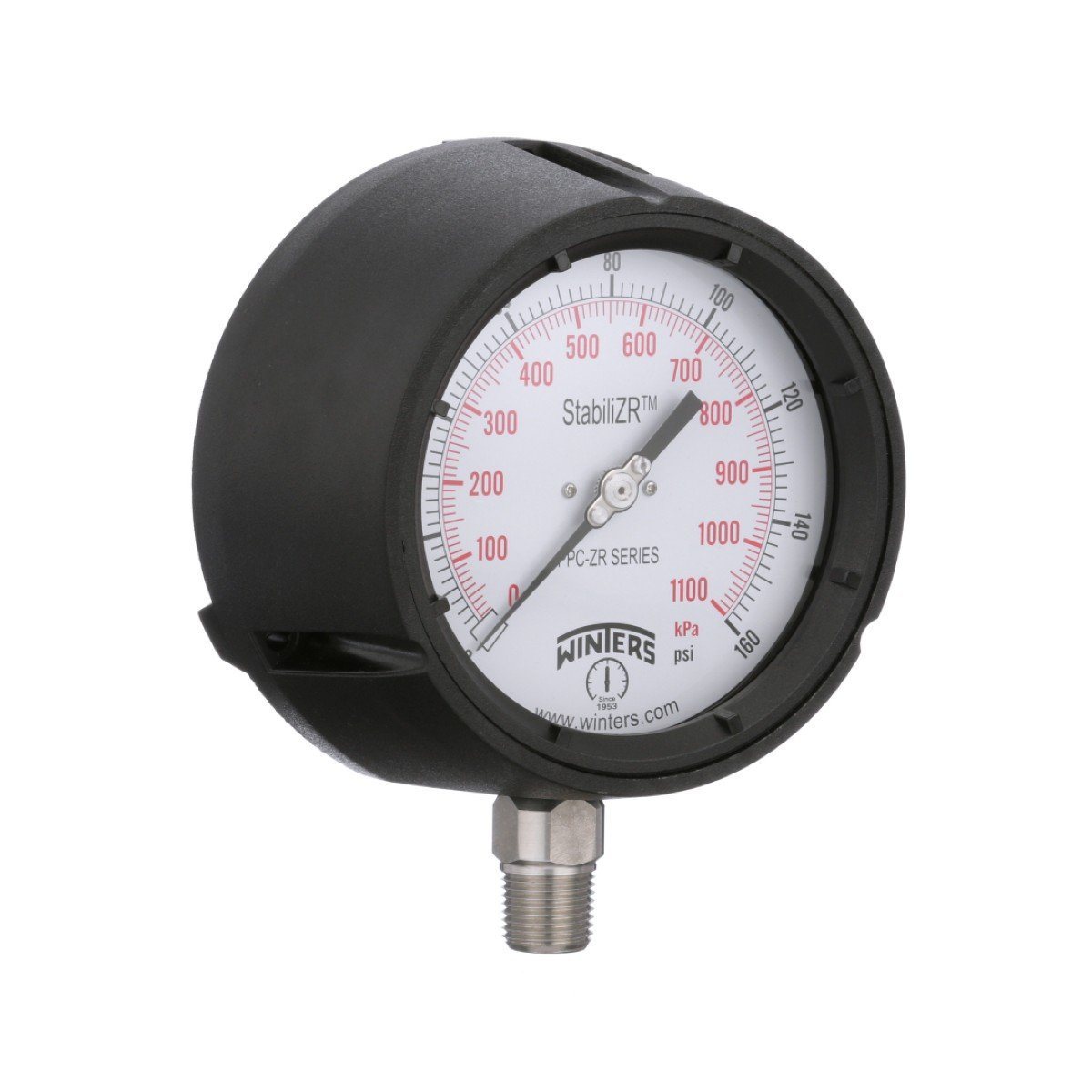

PPC-ZR Gauge | 4.5in Dial | Bottom Mount

Product Features:

Winters PPC StabiliZR Process Gauges are used where operator safety is a must. Applications are suited for the chemical and petroleum industry where chemical compatibility and contamination is a concern. This winters ppc gauge has StabiliZR feature and dual scale with 4.5 inch Dial and 1/2 inch connection. StabiliZR feature eliminates the need for liquid fill while still allowing the dampening of gauge needle.

• StabiliZR dampened movement minimizes effects of pulsation and vibration without liquid filling

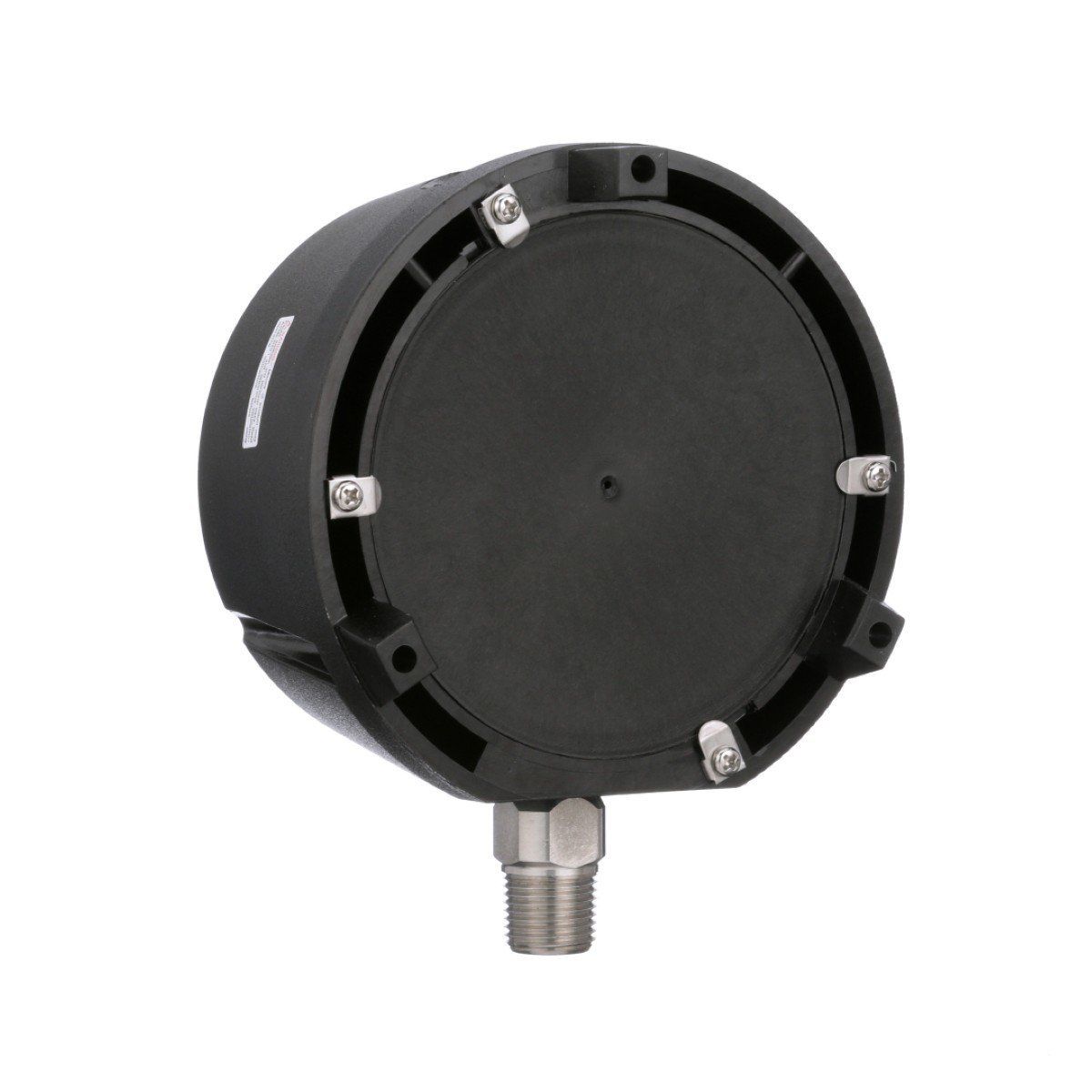

• Solid phenolic front and polypropylene pressure relief back safety case
• ±0.5% accuracy
• Stainless steel full rotary movement
• Micrometer pointer for ease in calibration
• Under and overload stops
• 316L stainless steel or brass wetted parts standard
• Restrictor screws standard on dual scale (optional on single scale gauges)
• ASME B40.100 compliant
• RoHS compliant (SS and Monel internals only)
• CRN registered
• 5 year warranty

PPC Spec Sheet
