Style 118 Repair Clamp Handiband
Style 118 Repair Clamp Handiband 2
Style 118 Repair Clamp Handiband
Style 118 Repair Clamp Handiband 2
**Please note that pictures may not properly represent actual products**

Dresser Style 118 | Repair Clamp Handiband

Nominal Size: 0.5 in
Width: 3 in

Product variant with selected options does not exist!
$ 21.83
SKU: 0118-0300-009
Weight: 0.5 lb
Flat $4.99 Shipping
Share Post Pin E-mail

Style 118 | Repair Clamp Handiband

Product Features:

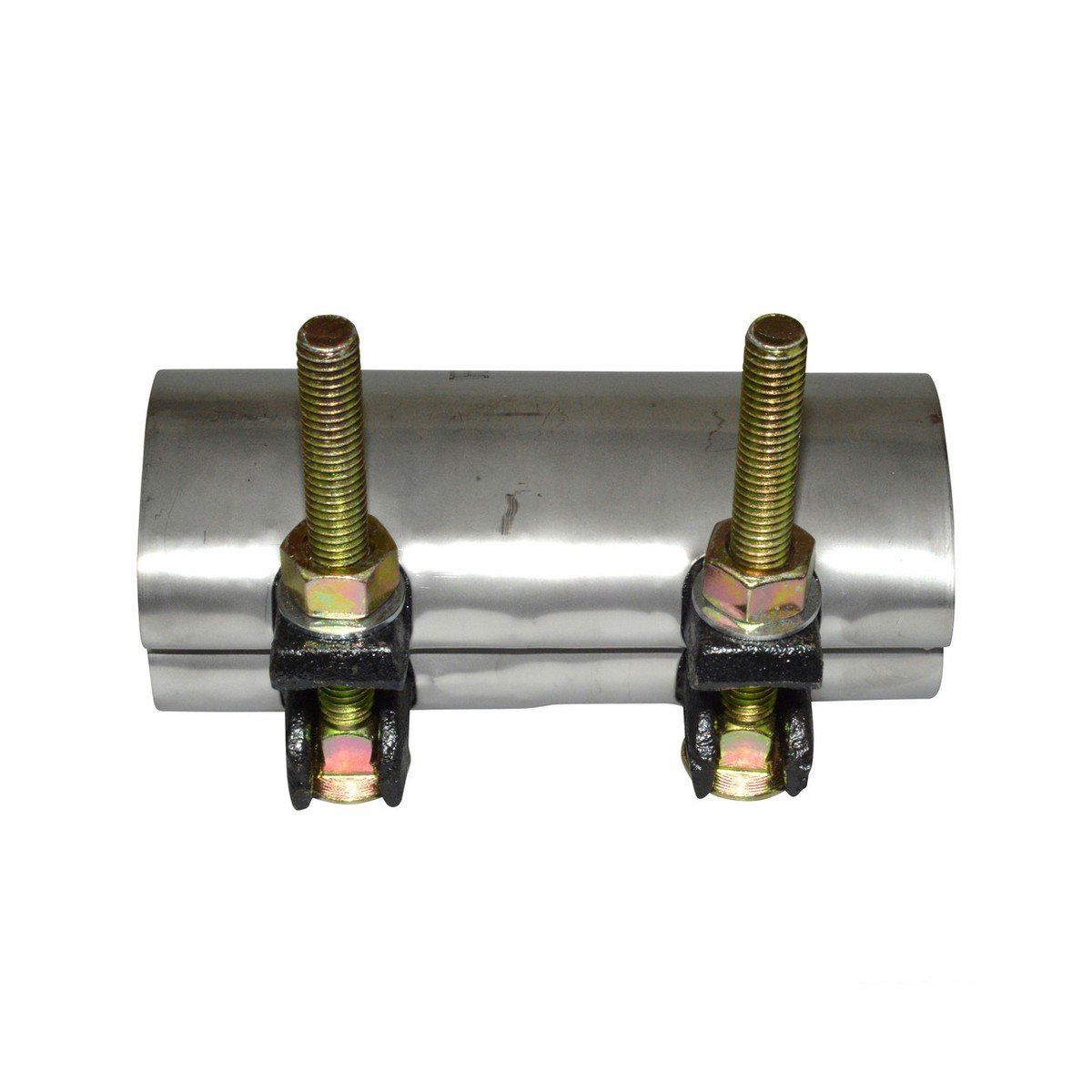

Dresser Style 118 Pipe Repair Clamp or "Handiband" is a field-proven, low cost band-type repair clamp for quick repair of small leaks and holes in steel piping. Installation is fast, easy and foolproof. Compression of the gasket seals the leak completely and permanently. The Dresser rubber compound gasket offers superior resistance to oils, aromatic and aliphatic hydrocarbons, gasoline and condensates.

Note: Style 118 pipe repair Dresser clamp does not provide a full 360-degree seal on the pipe. For full circle seals Go to Style 360 Repair Clamp

Style 118 Dresser Spec Sheet

Materials:



  • Band : Stainless Steel 18-8
  • Type 304 Lugs : Ductile Iron ASTM 536 Bolts
  • Nuts : Alloy to ANSI A21.11
  • Gasket : Gridded to Dresser Specs

Size & Dimensions:

Size Dimension table for Dresser Style 118 Dresser Clamp

General Information

Q) When will my item ship?
A) Most items ship with-in 24-48 hrs.

Q) When will I get the tracking number?
A) Trupply ship items from multiple warehouses. Tracking number is available 24 hrs after shipping.

Q) What is your return policy?
A) Trupply offers 100% refund for unused items with-in 30 days.

Q) How can I get MTR?
A) MTRs are provided upon request. You can mention it at the time of order under "Order Notes" or email customer service.

Q) Who pays for shipping?
A) The buyer

Q) Where is Trupply located?
A) Trupply's main warehouse and office is in Houston TX.

Q) What are your customer service hours?
A) Monday to Firday 8 AM to 5 PM Central Time.

Q) I have more technical questions.
A) Email or call us for further help.

Country of Origin

Domestic Products Manufactured or Assembled in USA

Technical Specifications

Coming Soon

Test Report, Data Sheet And Drawing

Coming Soon

Questions & Answers

Have a Question?

Ask a Question

  • Style 118 | Repair Clamp Handiband-Does this handle 212 steam degrees F?

    The standard gasket temp rating goes up to 212F so you would probrobly need a high temp gasket for your application. We can assist you more on our sales inbox at [email protected].

  • How can you make sure when ordering you get the high temp gasket?

    We do not have special items available on the website however we can qoute you through our sales inbox at [email protected]

  • Good morning. The 4" waste pipe for a basement toilet has disintegrated below the mounting flange rendering it unusable. Can this product (or another one) be used as a splice to bridge to remove and replace the bad pipe, connecting new pipe to restore the flange. I had one full service plumbing company take a look at it and they wanted to remove the furnace, waterheater, three walls and dig up our complete finished basement floor to replace all the pipe to the city's sewer. There's got to be a better way!!!!

    Since  this  product  does  not  provide  a full seal  all  the  way  around,  I would  not  reccomend  bridging  gaps  with it.
    our Style 360 Clamp may do the trick for you.
    Style 360 Repair Clamp

  • Temperature rating??

    The temp rating for this product is based on the gasket. For typical buna gaskets the max temp is 212F and for high temp gaskets it goes up to 1200F.

  • can this be used on steel gas pipe?

    Sure. Style 118 can be used for this application.

  • Have a pin whole leak in a cast iron pipe. Will this help the situation ?

    Yes! This product can help you.

  • could you tell me what the pressure rating is for the style -118

    1/2” – 4” 100 psi
    5”– 8” 150 psi

Customer Reviews

Based on 24 reviews
92%
(22)
4%
(1)
0%
(0)
0%
(0)
4%
(1)
R
Richard Tool
Boiler repair

Excellent repair clamp

N
Neil Rodgers

Dresser Style 118 | Repair Clamp Handiband

A
Adrienne Crowell
Dresser Style 118 | Repair Clamp Handiband Rating

The item was returned and I have not received a refund of the purchase price as the item did not conform with the dimension ordered. DO NOT order from them because if they make a mistake, you - the consumer gets to pay restocking, return postage, and its a real misery and additional expense with NO return on investment. RUN

F
Fred Rickert
Great band for companies who don’t want to d sad pend money to fix it right

These help keep our systems up and running when there’s leaks. The Corp idiots won’t spend money on fixing it right so we count on these bands to keep thing going! Thank you for these nice bands. We have bought lots of them!

B
Brent Turner
3 inch x 12 dresser clamps

Clamps did the job and saved me some money. I did have to increase the diameter of the pipe, (3 inch irrigation) a little with some rubber I had, but after that it worked great.
